LT 16S 40A CAN RS485 BMS

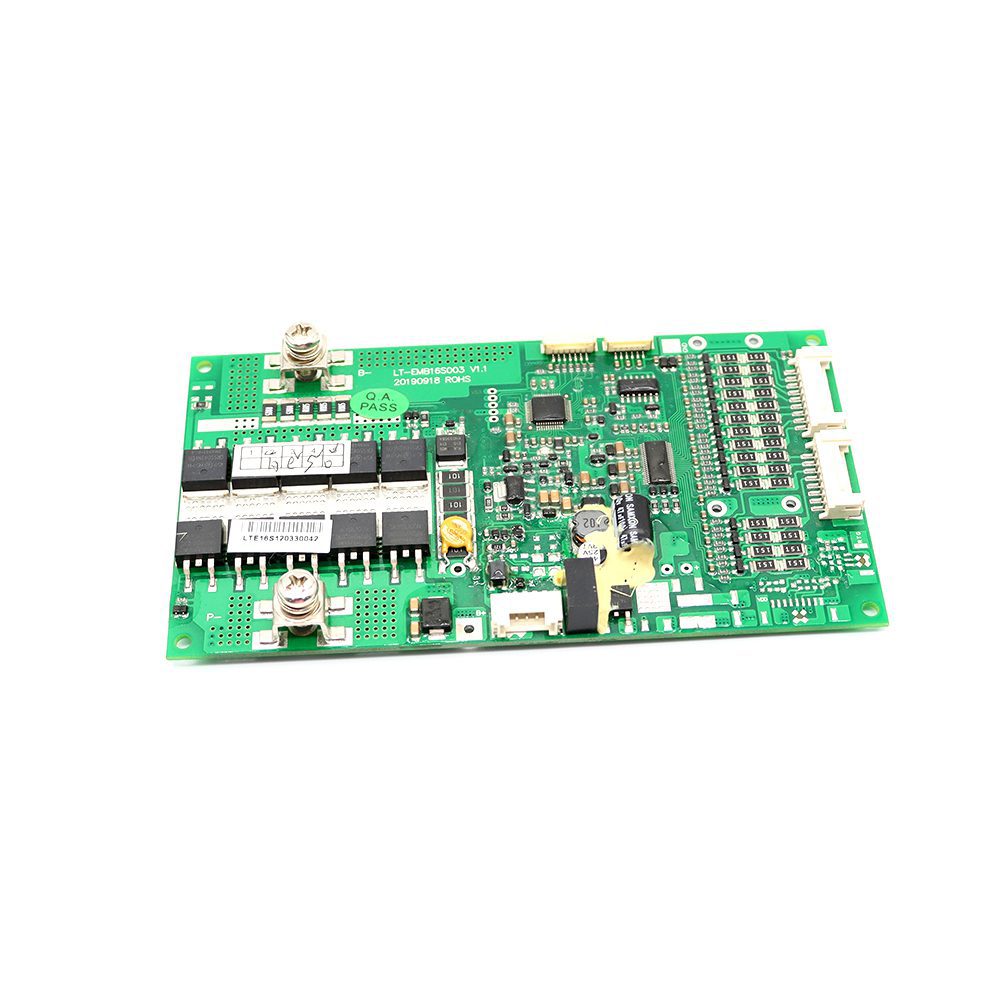

General Info of EMB16S003 16S 40A CAN/RS485 BMS

Smart BMS 7S to 16S for Lithium ion Lifepo4 batteries 40A continuous discharge current with CAN or RS485 communication.Monitor your battery with battery main info SOC,Volt,Current etc.

Parameters:

1. Battery Compatibility: The BMS is specifically designed for 7S to 16S lithium battery packs, allowing you to monitor and manage the individual cells in the pack.

2. Continuous Discharge: The BMS supports a continuous discharge current of up to 40A, allowing for the efficient use of power from the battery pack.

3. Communication Interfaces: The BMS is equipped with CAN (Controller Area Network) or RS485 communication interfaces. These interfaces enable communication with external devices, such as a Battery Management System Master or other control systems.

4. Compact Size: The BMS has a compact size with dimensions of 146mm x 80mm. This compact form factor makes it easier to integrate into various battery pack configurations.

5. AFE Ti BQ Series + MCU: The BMS utilizes an Analog Front End (AFE) based on the Texas Instruments (TI) BQ series, along with a Microcontroller Unit (MCU). This combination of components enables accurate monitoring and control of the battery pack.

Functions:

6. Parameters Adjustable: The BMS allows for adjustable parameters, providing flexibility in configuring the system according to specific requirements. This includes settings related to voltage thresholds, current limits, and protection parameters.

7. SOC Fuel Gauge: The BMS features a State of Charge (SOC) fuel gauge, which provides an indication of the battery pack’s remaining capacity. This allows for better monitoring and estimation of the battery’s state of charge.

8. State of Health (SOH): The BMS also provides a State of Health (SOH) indication, which gives an assessment of the battery pack’s overall health and performance.

9. E-switch and Sleep Mode: The BMS includes an E-switch, which allows for easy control of the battery pack’s power state. Additionally, it features a Sleep Mode, which helps conserve power when the system is in standby or not in use.

10. Protection Features: The BMS incorporates various protection features to ensure the safety and longevity of the battery pack. These include protections against high/low temperature, over-current, over-voltage, low voltage, short circuit, and other fault conditions.

The EMB16S003 is designed to provide efficient management and protection of a 16S 48V lithium battery pack. It offers adjustable parameters, communication capabilities, and multiple protection features to ensure the safe and reliable operation of the battery system.
