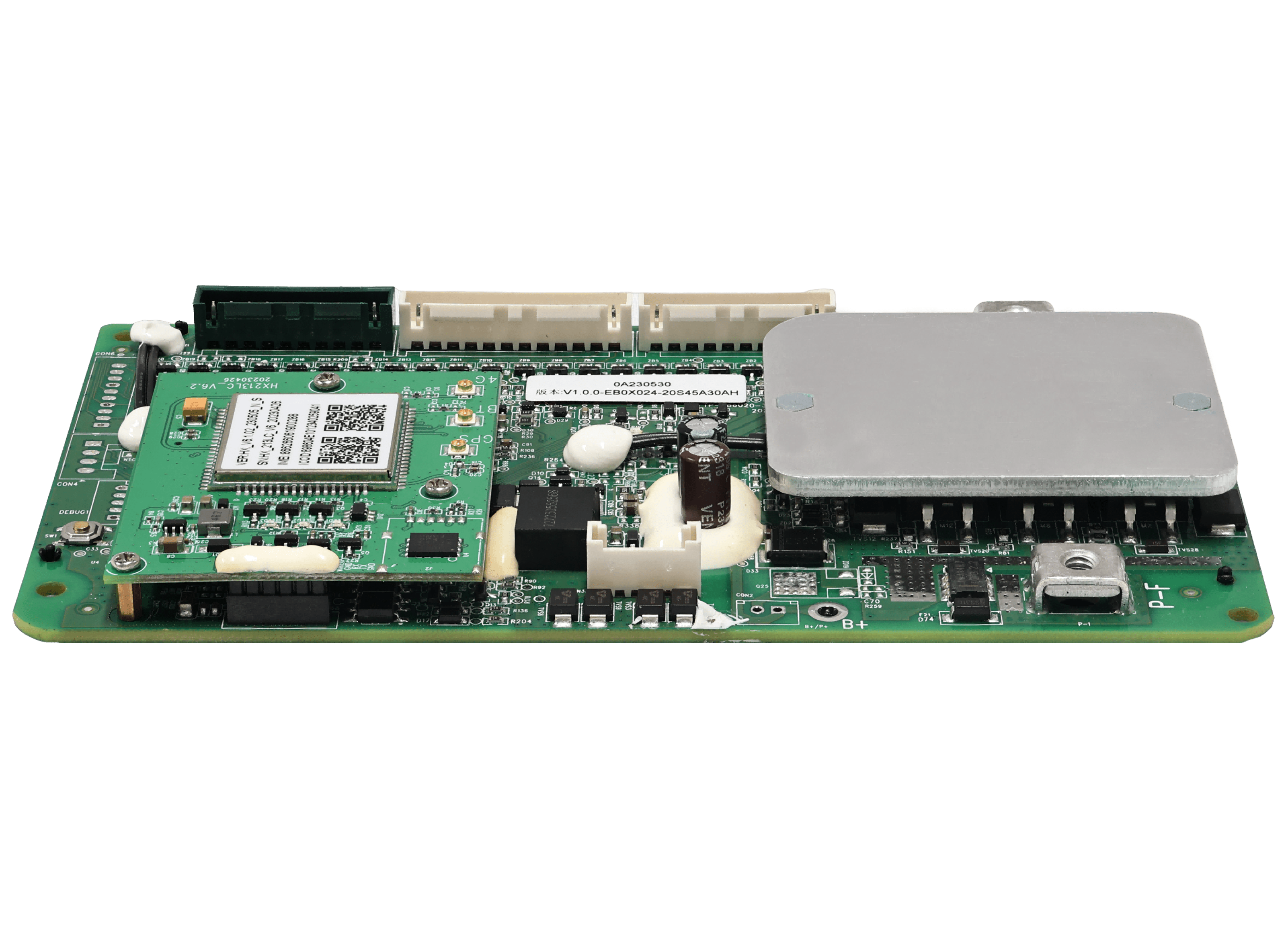

16S 48V Swapping Battery BMS with 4G/2G Module for Battery Swapping eBikes,e-Rickshaw,Electric Motorcycles

16S 48V Swapping Battery BMS Main Features:

1,Supports battery series from 13S to 24S Lithium-ion/LiFePO4 cells,50A to 100A discharge ability models are optional.

2,Multi-Communications, RS485/Bluetooth/4G which you can monitor/control your power easily via your Phone/PC.

3,Compacted size for various applications. High power motorcycle,e-Rickshaw,e-Cargo Bikes,Golf Carts,Battery Rental Business etc.

Model: EB4850/EB60100/EB72100

Features:

●Provides protection for 10~16s cells in series
●Provides-protections in charging and discharging
●Over-current and short circuit protection function of hardware
●Two-level protection of software and hardware
●3-circuit core temperature detection, MOS temperature monitoring and passive protection
●Charging and discharging at the same port
●4G/2G module
●RS458/Bluetooth(support China tower protocol)
●Pre-discharge function
●Ultra-low power consumption, storage and transportation function Equalization function
●Balance Function
●Auto Function
●Auto Series by Cell Function
●OTA Functions ●Compacted Size:172*104*20. 5 (Length * Width * Height)

Mode	TP-EB4850	TP-EB6050	TP-EB60100	TP-EB7630
Voltage(Range)	10S-16S	13S-20S	13S-20S	13S-24S
Applications	Battery Swapping,Electric Motorcycle,E-Rickshaw etc
NTC Thermal Sensors	6 NTCs(4/5 for battery cells,1 for ambient and 1 for MOSFET )
Communications	RS485/4G or 2G Wireless/Bluetooth
Output Current Ability	75A	75A	100A	100A
Datas Storage	1000PCs and automatic coverage
Working Temperature	-20 to 70℃

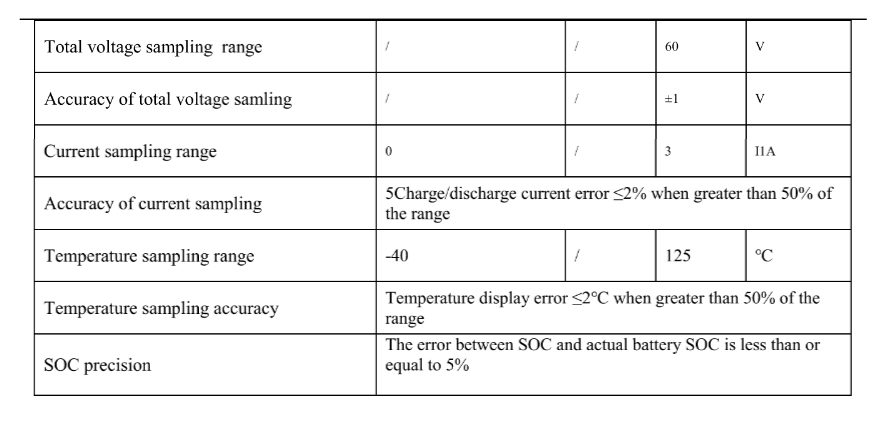

SOC Accuracy	≤5%
Temperature detecting Accuracy	≤2℃(Under 50%+ Capacity)
Current detecting Accuracy	≤2%(Under 50%+ Capacity)
Anti-sparking	Yes
4G Wireless Function	OTA/Parameters Setting,Alarm etc Functions
