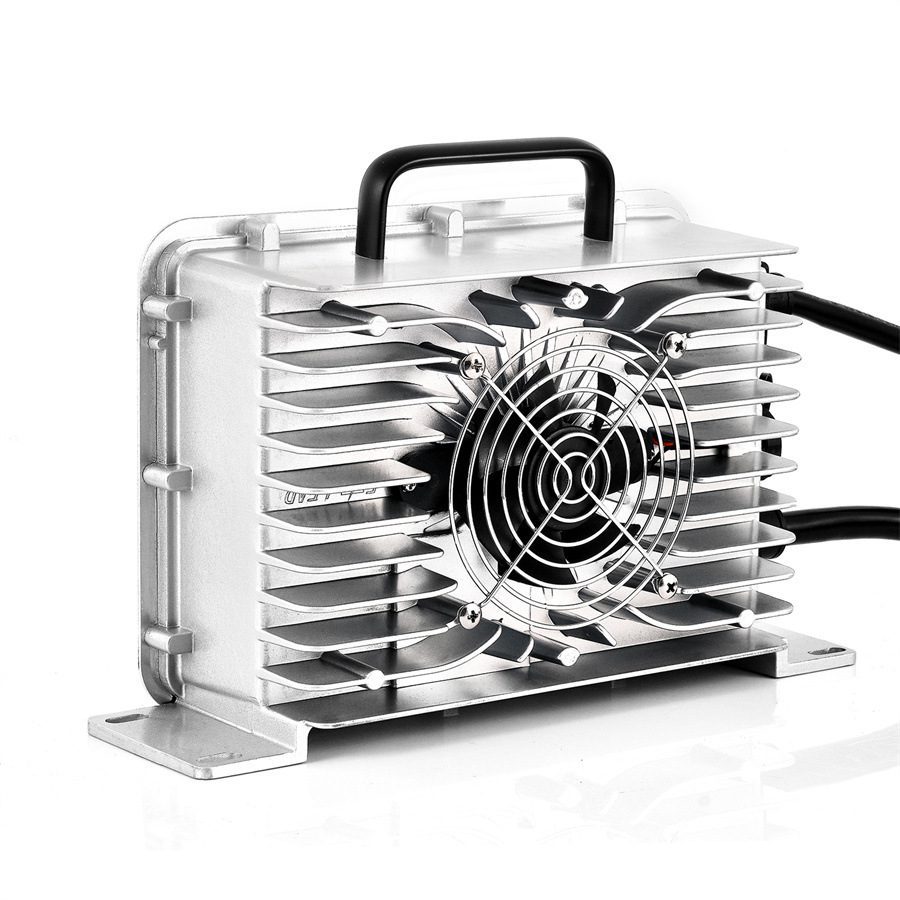

24V 40A Charger with CANBUS for Electric Traction Vehicles

Model: E22 (24V 40A Charger with CANBUS)

Input: 100-240Vac

Casing: Aluminum die-casting

Waterproof rating: IP66

Protection: Input under/over-voltage protection, overheat protection, output overcurrent protection, output overvoltage protection, short circuit protection, etc.

Based on the battery type, series connection, and capacity, suitable charging voltage and charging current are set. Common outputs are as follows:

Rated Voltage	Lead Acid Battery	LiFePO4 Battery	Lithium ion Battery	Charge Current
Rated Voltage	Lead Acid Battery	LiFePO4 Battery	Lithium ion Battery	@220Vac
12V	14.7V	14.6V	16.8V	30A
24V	29.4V	29.2V	29.4V	30A
36V	44.1V	43.8V	42V	30A
48V	58.8V	58.4V	58.8V	25A
60V	73.5V	73V	67.2V	20A
72V	88.2V	87.6V	84V	15A
84V	102.9V	102.2V	100.8V	12A
96V	117.6V	116.8V	117.6V	10A

* The above data is for reference only. Please confirm the required output current and voltage with our company. Especially when the input voltage is 100-120Vac, the output power will be reduced by a certain proportion.

AC plug is optional.

The length and wire diameter of the AC cable are optional. If there are no special requirements, they will be matched with appropriate specifications according to the model.

AC plug

DC plug is optional. (As long as it can be purchased in the market, customers can also provide their own.)

The length and wire diameter of the DC cable are optional. If there are no special requirements, they will be matched with appropriate specifications according to the output current.
