This product is suitable for lithium iron phosphate battery communication backup power supply, which can provide overcharge, overdischarge, overcurrent, overtemperature, undertemperature, short circuit and reverse
connection protection functions for the battery pack, and can also provide voltage equalization function during charging; It CAN
realize reliable multi-group parallel connection through CAN bus or RS485, and communicate with the upper computer. The maximum
number of parallel groups is 32 groups. Parameter configuration, data monitoring and software upgrade are carried out on the upper
computer software. The Smart Lithium BMS is compatible with 15-string and 16-string lithium battery packs.

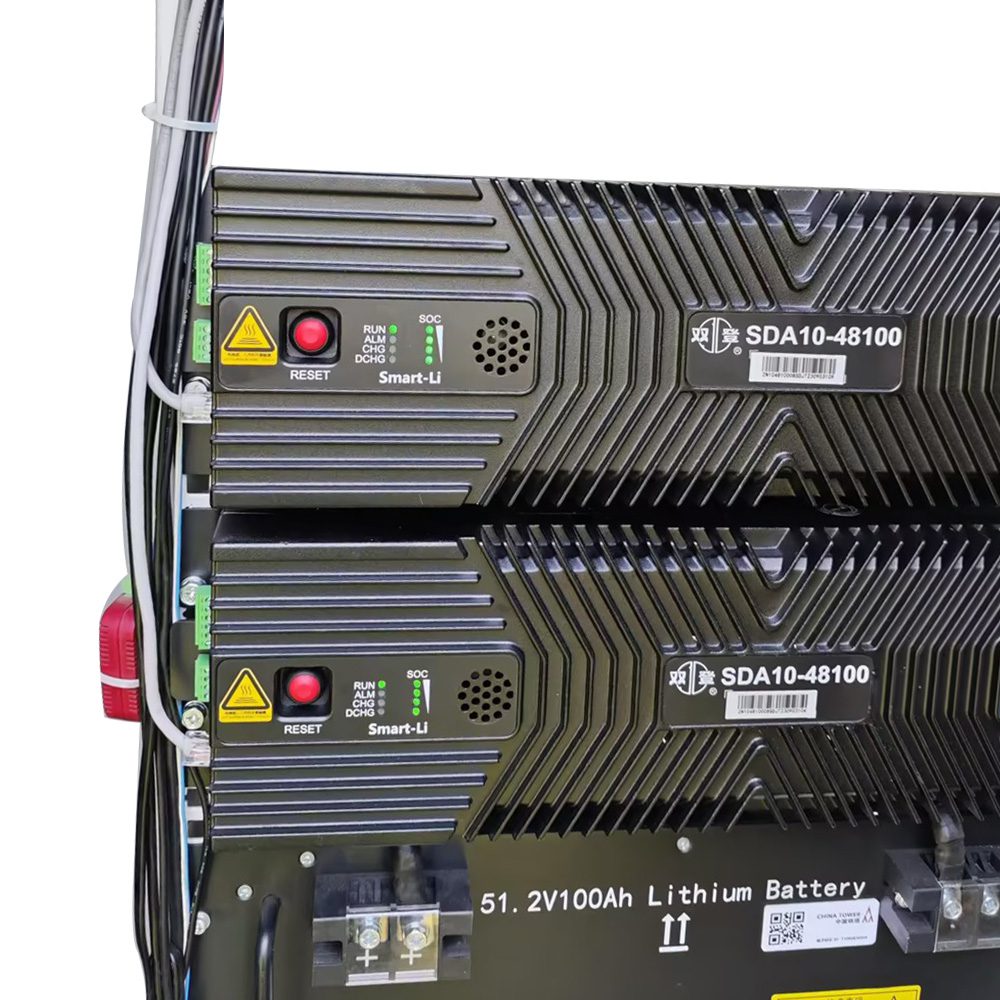

SmartLi 48V 100A Backup Battery BMS for Telecom Base Station
|
SmartLi 48v telecom backup power LiFePo4 Battery intelligent voltage boosting with only 3 U high for Telecom Power Supply
|
|||
|
Technical parameter
|
Rated specification
|
Precision/error
|
Remarks
|
|
Product size
|
442.6 * 129.5 * 50mm (length * width * thickness), meeting 19-inch wide rack installation requirements
|
||
|
Heat dissipation mode
|
Natural heat dissipation
|
||
|
Working mode
|
Support normal mode, charging current limit mode, discharge current limit mode, discharge boost mode, maintenance mode
|
||
|
Operating voltage
|
36V ~ 60VDC
|
||
|
Rated output
|
4800W
|
≤ ± 2%
|
Two-way, and the parameters can be set
|
|
Boost output setting
|
54VDC
|
≤ ± 0. 5%
|
Parameter settable
|
|
Operating power consumption
|
≤ 8 W
|
/
|
|
|
Battery-side static dormancy current
|
≤ 0.2 mA
|
/
|
|
|
Number of single voltage detection channels
|
Road 15
|
/
|
|
|
Monomer voltage detection
|
2 ~ 4.5 VDC
|
≤ ± 10 mV
|
-20 ℃ ~ + 60 ℃
|
|
Battery/bus current detection
|
-180A ~ + 180A
|
≤ ± 2%
|
Error ≤ 1 A below ± 50 A
|
|
Number of temperature detection channels
|
8-way battery temperature
2-way MOS temperature, 1-way ambient temperature |
≤ ± 2 °C @ 0 °C ~ + 50 °C
≤ ± 3 °C @-40 °C ~ + 85 °C |
NTC Specifications
10kΩ/3950 |
|
Accuracy of battery total voltage acquisition
|
0 ~ 60V DC
|
≤ ± 0. 2V
|
|
|
Accuracy of bus voltage acquisition
|
0 ~ 60V DC
|
≤ ± 0. 2V
|
|
|
Equalizing mode of single cell
|
Passive discharge equalization
|
100mA ± 20%
|
Vcell = 3.6 v;
|
|
Dry contact input
|
48V DC/1A
|
/
|
1 channel (active at high level)
|
|
Dry contact output
|
48V DC/1A
|
/
|
Road 2 (normally open)
|
|
Heating control
|
48V DC/2A
|
The average temperature of battery is lower than the set value to turn on heating, and it is greater than the stop heating value
to stop heating, and the charger is not heated |
|
|
LED
|
4-way SOC
4-way status indication |
Running, Alarming, Charging, Discharging
|
|
|
SOC accuracy
|
/
|
≤ ± 5%
|
Pursuant to YD/T2344.1-2011
|
|
Isolation withstand voltage class
|
707V DC or 500V AC
|
/
|
Communication Interface and Low Voltage
|
|
Data storage
|
≥ 100000 historical data records
|
/
|
|
|
Parallel use
|
Support 32 sets of batteries to be used in parallel, which can realize charging and discharging current sharing
|
||
System working schematic diagram
BMS with DCDC converter internal diagram
The smart lithium battery BMS is divided into
two parts: BMU and BDC. BMU (Battery Management Unit) realizes the functions of voltage and temperature monitoring, SOC
calculation, operation logic strategy control, parameter setting, external communication and so on. BDC (Bidirectional Direct
Current Converter) is a bidirectional DC conversion circuit between the battery pack and the main circuit of the communication
two parts: BMU and BDC. BMU (Battery Management Unit) realizes the functions of voltage and temperature monitoring, SOC
calculation, operation logic strategy control, parameter setting, external communication and so on. BDC (Bidirectional Direct
Current Converter) is a bidirectional DC conversion circuit between the battery pack and the main circuit of the communication
Bidirectional DC/DC electrical parameters
Charging operation
Discharge operating state
Three output modes for discharge based on this DCDC converter
Mode 1: Self-managed constant voltage discharge mode: the lithium battery module can follow the bus voltage of the system power supply (with the detection bus voltage-0.3 V as the discharge setting value), and intelligently self-manage the constant voltage discharge output.
* Self-managed temperature compensation mode: the following bus voltage is 48v-52V
* Self-managed no temperature compensation mode: the following bus voltage is 48v-54V
The intelligent lithium battery module works in this mode. When it is connected in parallel with lead-acid batteries and lithium iron phosphate batteries (including cascade batteries), the intelligent lithium battery enters the constant voltage discharge state according to the change of the bus voltage of the power supply system, which can realize the priority discharge of the main use of the intelligent lithium battery. When the mains power is out, the smart lithium battery is mainly used for priority discharge. The discharge depth of the smart lithium battery can be set (the default DOD is 90%). When the lead-acid battery is discharged to the lower constant voltage voltage of the smart lithium battery pack, the smart lithium battery is mainly discharged again until the smart lithium is protected by low voltage, the smart lithium will no longer discharge, and the lead-acid battery will continue to discharge.
Note: Lead-acid battery full charging, floating charging, temperature replenishment, and power-down voltage management follow the characteristics of lead-acid batteries or the setting values of the original power supply system. When smart lithium is mixed with lead-acid batteries, the original lead-acid battery management strategy will not be changed.
* Self-managed temperature compensation mode: the following bus voltage is 48v-52V
* Self-managed no temperature compensation mode: the following bus voltage is 48v-54V
The intelligent lithium battery module works in this mode. When it is connected in parallel with lead-acid batteries and lithium iron phosphate batteries (including cascade batteries), the intelligent lithium battery enters the constant voltage discharge state according to the change of the bus voltage of the power supply system, which can realize the priority discharge of the main use of the intelligent lithium battery. When the mains power is out, the smart lithium battery is mainly used for priority discharge. The discharge depth of the smart lithium battery can be set (the default DOD is 90%). When the lead-acid battery is discharged to the lower constant voltage voltage of the smart lithium battery pack, the smart lithium battery is mainly discharged again until the smart lithium is protected by low voltage, the smart lithium will no longer discharge, and the lead-acid battery will continue to discharge.
Note: Lead-acid battery full charging, floating charging, temperature replenishment, and power-down voltage management follow the characteristics of lead-acid batteries or the setting values of the original power supply system. When smart lithium is mixed with lead-acid batteries, the original lead-acid battery management strategy will not be changed.
Mode 2: Power management Constant voltage discharge mode: the intelligent lithium battery module communicates with the switching power supply system. The intelligent lithium battery module can be set to the constant voltage discharge mode through the switching power supply. The constant voltage discharge can be set to 48V ~ 57V, and the output is maintained at constant voltage at the setting value of the power supply; This mode can improve the power supply capacity of the site, and it is not recommended to mix it with other types of batteries.
Mode 3: Battery characteristic discharge mode: the lithium battery module outputs according to the battery characteristic
discharge curve, that is, the output voltage of the smart lithium battery is equal to the battery voltage. This mode is similar to ordinary lithium battery BMS, but charging and discharging overcurrent will start DCDC for current limiting instead of direct overcurrent protection. This mode can be connected in parallel with lead-acid batteries to support synchronous discharge.
discharge curve, that is, the output voltage of the smart lithium battery is equal to the battery voltage. This mode is similar to ordinary lithium battery BMS, but charging and discharging overcurrent will start DCDC for current limiting instead of direct overcurrent protection. This mode can be connected in parallel with lead-acid batteries to support synchronous discharge.
Interface Description
Product Description
|
Product Name
|
15S 48V 100A BMS for Telecom TP-BMSP48100B2-15S
|
|
Application
|
Telecom base station backup power supply
|
|
Communication Method
|
RS485/CAN
|
|
Extended Function
|
Wireless 4G Communication, Gyroscope Anti-Theft, Bluetooth Module,etc
|
Product Advantage and Applications
Introduction
It’s a BESS worked out by Tianpower , Adopted LFP battery, which has the features as below: 1)Long lifespan, 2)Space saving and easy maintenance. 3)Safety and reliability, 4)Multi-level BMS system match with entire network management reduces Operating Expense. 5)Active balance control supports the mix use of new and old batteries, which reduces the Capital Expenditure.
Features
Reliable • Highly stable LFP cell, no fire after thermal runaway. • Long cycle lifespan, cycle lifetime can be up to 5050 times. • Multi-level BMS system ensures reliability. • Battery Module-level fire extinguishing, precise and quick fire fighting.
Efficient • Smart BMS system, saving 81% routine O&M costs. • High power density, saving 72% footprint. Simple • Remarkably extend the EOF of the power system by input new batteries in time. • Automatic grouping and capacity check, reducing manual capacity test costs and avoiding power failure risks. • Active current balance control, supporting new and old battery cabinets mixed using, flexible to expand. • Smart active voltage balance control, Battery strings of different numbers of lithium batteries can be connected in parallel.
|
Product Features
|
Discharge Features
|
|
Integrated BMS + bidirectional DCDC to achieve inteligent management of lithium battery charging and discharging.support mixed use of lead-acid and lithium batteries, and rising the voltage for charging.
|
Supports constant voltage discharge, discharge current balance, settable discharge voltage, improve the power supply efficiency and stability, seamless switching of charge/discharge, etc.
|
|
Intelligent design
|
Parallel power expansion
|
|
Equipped with Bluetooth APP, wireless 4G communication, online parallel upgrade, gyroscope anti-theftand other extended function interfaces.
|
Supports up to 32 groups of batteries in parallel, with a peak efficiency of up to 98.5%
|
|
Multiple operating modes
|
Easy to maintain
|
|
lt has three modes of discharge: self-managed constant voltage discharge, power management constant vollage discharge, and battery characteristic discharge.
|
Supports multiple activation methods, forced power-off function, maintenance mode, and automatic arrangement of addresses and physical locations.
|
