Can Bus Adapter Bus Analysis Can Bus Data Logger Usb To Can Usbcan

• Hardware parameters
  * Protocol conversion between USB and CAN bus;
  * The USB interface supports USB2.0 and is compatible with USB1.1;
  * Support CAN2.0A and CAN2.0B protocol, support standard frame and extended frame;
  * Support two-way transmission of CAN channels, CAN sending and CAN receiving;
  * Support data frame, remote frame format;
  * CAN controller baud rate is selectable between 5Kbps-1Mbps, and configure CAN register to set special baud rate;
  * Industrial-grade magnetic coupling isolation chip used in CAN transceiver with isolation voltage of 2500V;
  * The CAN controller has 32 hardware FIFO receiving buffers, and the single-channel receiving capacity can reach 14000 frames per second;
  * USB bus direct power supply;
  * System operating platform: WinXP, Win7, WIN8, WIN10;
  * Working temperature: -40～85℃;
  * Shell size: 98*78*30mm, very small.

• Typical application
  * Realize the sending and receiving of CAN bus network through the USB interface of PC or notebook;
  * Fast CAN network data collection and data analysis;
  * USB interface to CAN network interface;
  * Industrial field CAN bus communication;

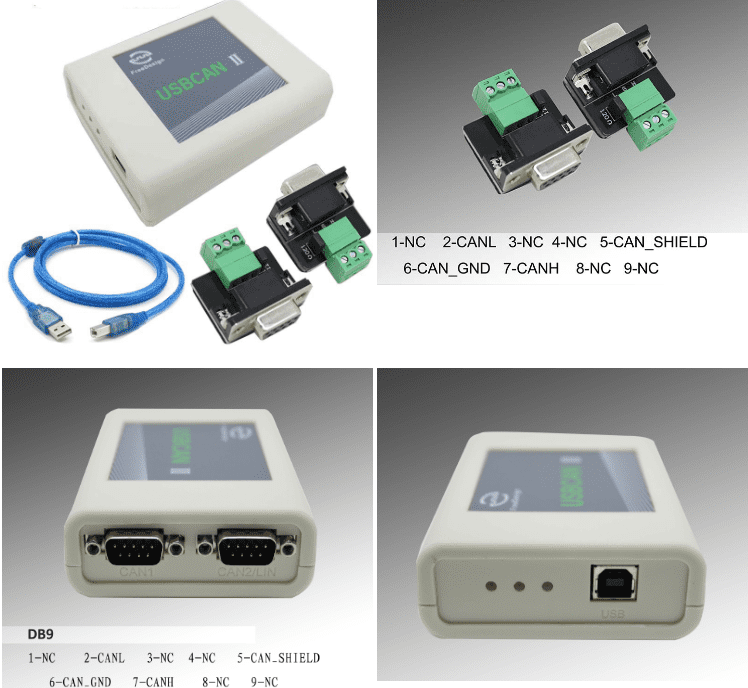

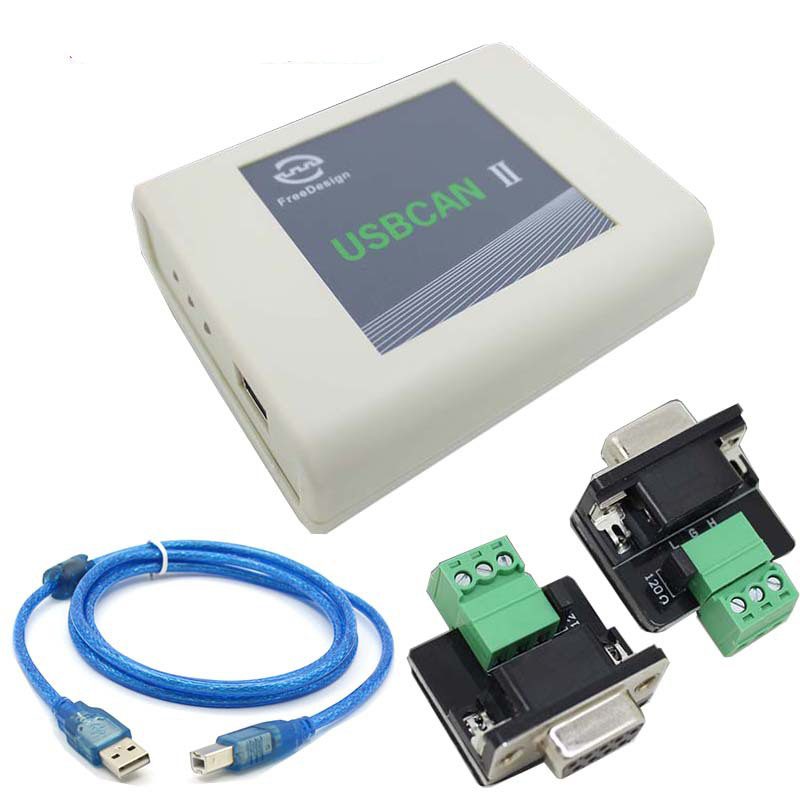

Product List
1) One dual-channel USBCAN II debugger.
2) CAN transfer board (CAN Bus Adapter) 2
3) One USB cable, the PC can be directly connected to the USBCAN debugger.
4) USBCAN debugger tool software, as well as Visual C++, Visual Basic CAN test software source code, DLL, LIB and other
development files, user manuals, CAN bus related materials, etc.;
