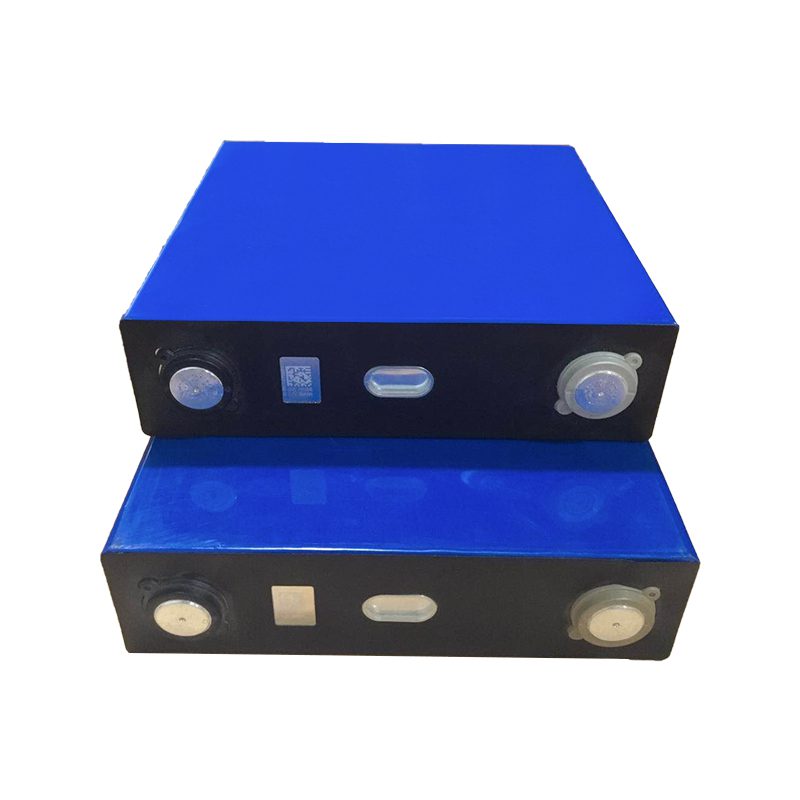

3.2V 120Ah CATL LiFePO4 Prismatic Battery Cell
Module:LFP48H4G6
Nominal Voltage:3.2V
Nominal Capacity:120Ah
Internal Resistance:≤0.5mΩ
Dimension: 174*48*171mm
Weight:2.84Kg
Parameters:
|
Item |
Parameters |
Remark |
|
|
Nominal Capacity |
120Ah |
0.2CA |
|
|
Nominal Voltage |
3.2V |
|
|
|
Internal Resistance |
≤0.5mΩ |
|
|
|
Discharge Cut-off Voltage |
2.5V |
|
|
|
Standard Charge Current |
24A |
0.2CA |
|
|
Charge Voltage |
3.65V |
|
|
|
Max. Charge Voltage |
3.70V |
|
|
|
Fast Charge Current |
120A |
1C (CC&CV) |
|
|
Max. Charge Current |
180A |
1.5C(CC&CV) |
|
|
Max. Discharge Current |
240A |
2C(CC&CV) |
|
|
Weight |
2.84Kg |
|
|
|
Operating Temperature |
Charge |
0~45℃ |
|
|
|
Discharge |
-20~60℃ |
|
|
Storage Temperature |
≤1 month |
-20~45℃ |
|
|
|
≥6 months |
-20~35℃ |
|
Details:
CATL LFP48H4G6 120Ah Battery Cell is one of most popular LiFePO4 Battery cell with capacity of 120AH.
There are hundreds of batteries in stock.
