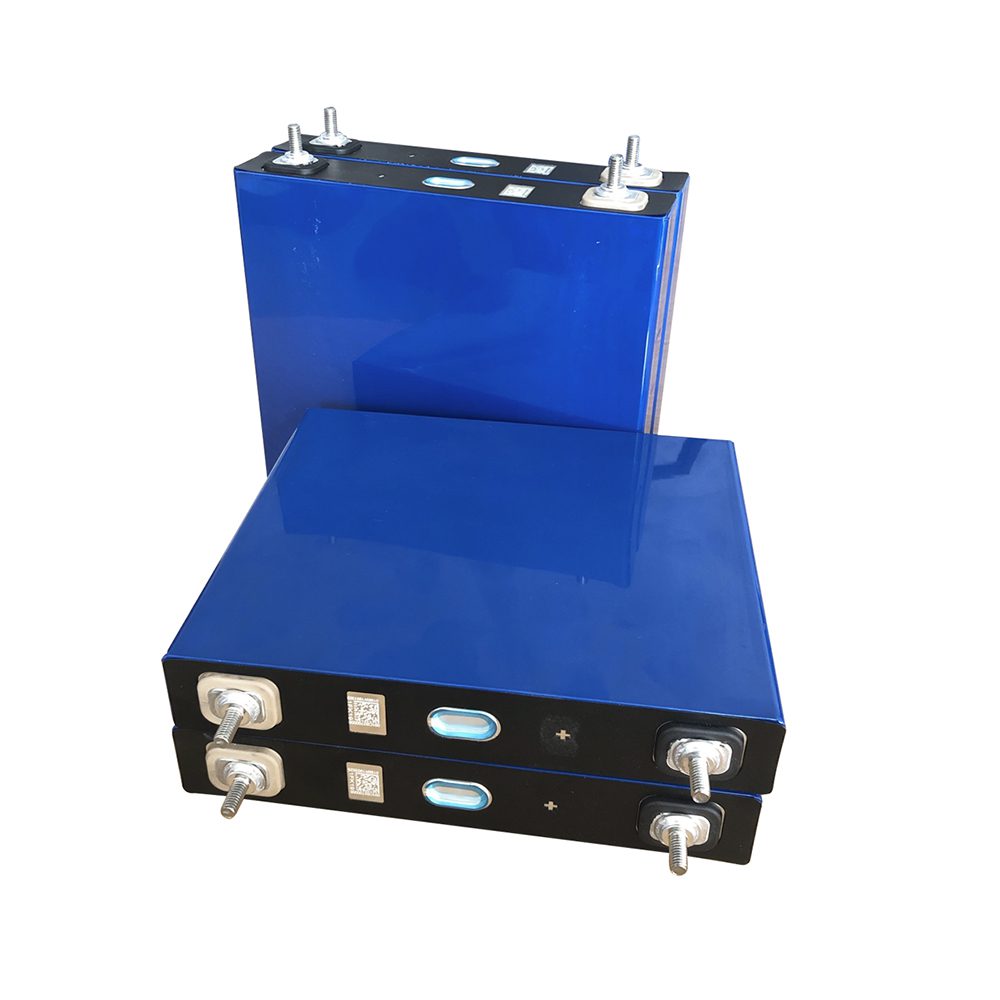

3.2V 100Ah CATL LiFePO4 Battery cell with screws for easy connection
Module:001CB270
Nominal Voltage:3.2V
Nominal Capacity:100Ah
Internal Resistance:0.39±0.05mΩ
Dimension: 200.33*172.2*33.22mm±0.5mm
Weight:2.27±0.30Kg
Parameters
|
Items |
Parameters |
|
Typical capacity |
100 Ah |
|
Operating voltage |
2.5~3.65V |
|
Impedance (1KHz) |
0.39±0.05mΩ |
|
Shipping capacity |
40±1Ah |
|
Residual capacity |
≤3.5% |
|
Operating Temperature range |
Charging: 0~55℃, Discharging: -30~55℃ |
|
Storage Temperature |
-30~60℃ |
|
Standard charge current |
0.5C |
|
Max. continuous charge current |
1C |
|
Standard discharge current |
0.5C |
|
Maximum discharge current (continuous) |
1C |
|
Typical dimension(W*H*T) |
200.33*172.2*33.22±0.5mm |
|
Weight |
2.27±0.30Kg |
Details
Now we provide the specially customized 100Ah 3.2V CATL LiFePO4 Battery cell with screws for easy connection. It has long cycle life, high energy density and a wide operating temperature range.
