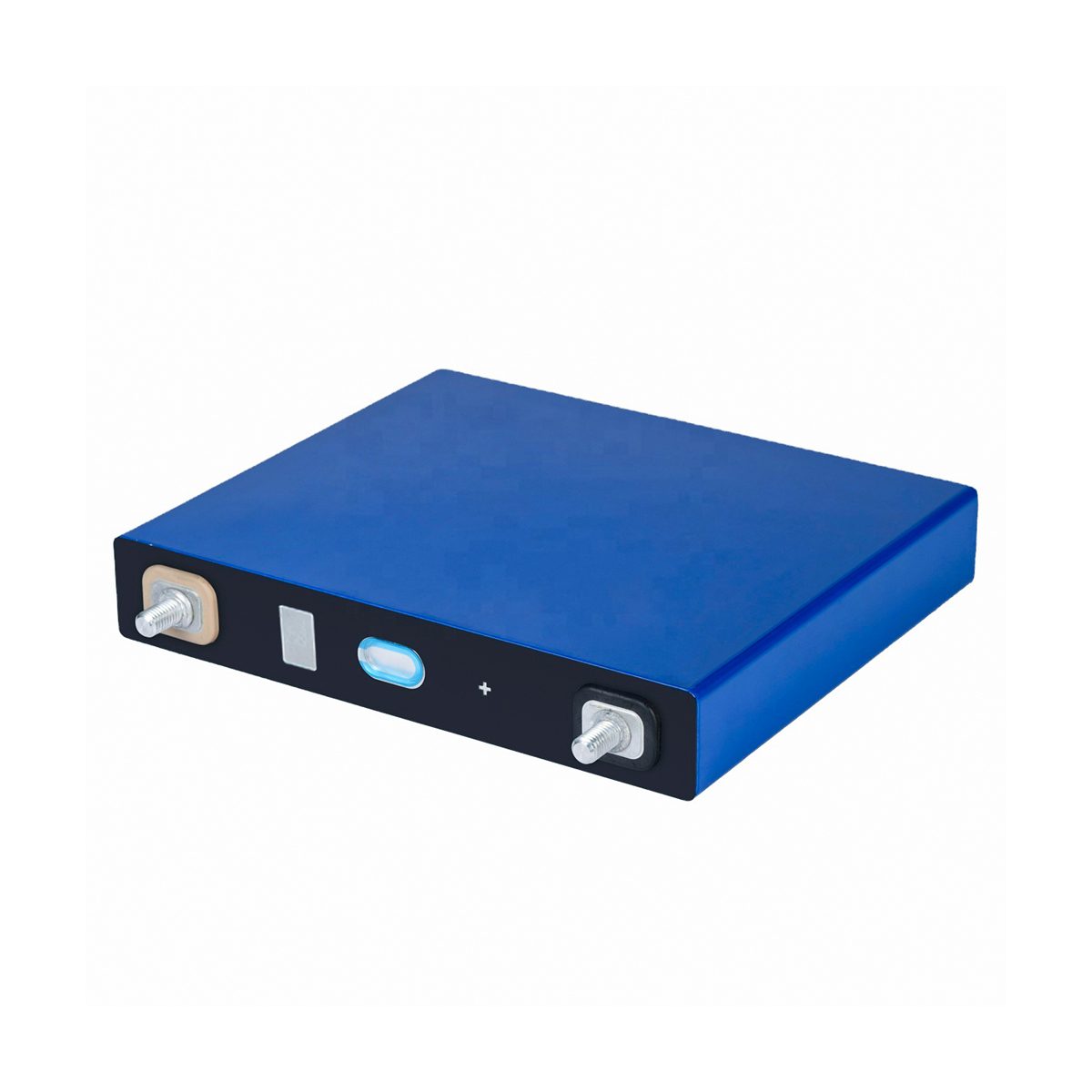

CATL LFP CB260 3.2V 150ah LiFePO4 Battery Prismatic Cell
Nominal Capacity: 150Ah
Voltage nominal: 3.2V
Chemistry: LiFePO4 (lithium ion phosphate)
Operating Voltage:2.5V~3.65V
Internal Resistance:0.34±0.05mΩ
Dimensions: 200.33*207.2*33.4mm
Weight: 2.95±0.3Kg
CATL 150Ah LFP cells can meet the needs of high-energy density and long distance travel, as well as safety and reliability. It has been widely applied to battery electroc vehicles(BEV), plug-in hybrid electric vehicels(PHEV), hybrid electric vehicles and energy storage systems.
Features:
1- prismatic aluminum shell lifepo4 cells from CATL
2- Support continuous discharge rate of 1C and charge rate of 1C
3- good cell consistency
4- widely applied for special electric vehicles, energy storage and telecommunication, etc
5- long cycle of 3500+ cycles
Parameters:
|
Item |
Parameters |
Remark |
|
Nominal voltage |
3.2V |
25±2℃，1C |
|
Nominal capacity |
150Ah |
25±2℃，1C |
|
Operating voltage |
2.5~3.65V |
T>0℃ |
|
Internal resistance |
0.34±0.05mΩ |
Fresh cell, (30~40%SOC)
|
|
Shipment capacity |
60±1Ah |
|
|
Self-discharge rate |
≤3.5% |
25℃, 50%SOC， |
|
Operating temperature range |
Charge: 0~60℃ Discharge: -30~60℃ |
|
|
Standard charge current |
0.5C |
25±2℃ |
|
Max. continuous charge current |
1C |
25±2℃ |
|
Charge voltage |
3.65V |
|
|
Standard discharge current |
75.0A |
25±2℃ |
|
Max. continuous discharge current |
150.0A(1C) |
|
|
Max. pulse discharge current (long pulse) |
300A(2C) |
3 minutes |
|
Max. pulse discharge current (short pulse) |
450.0A() |
T＜50℃ 60S, SOC>40% 10S, SOC<40% |
|
Discharge cut-off voltage |
2.5V 2.0V
|
T>0℃ T≤0℃ |
|
Cycle life |
≥3500 cycles |
80%DOD |
|
Dimension |
200.33*207.2*33.4mm |
|
|
Weight |
2.95±0.3Kg |
|
Details:
