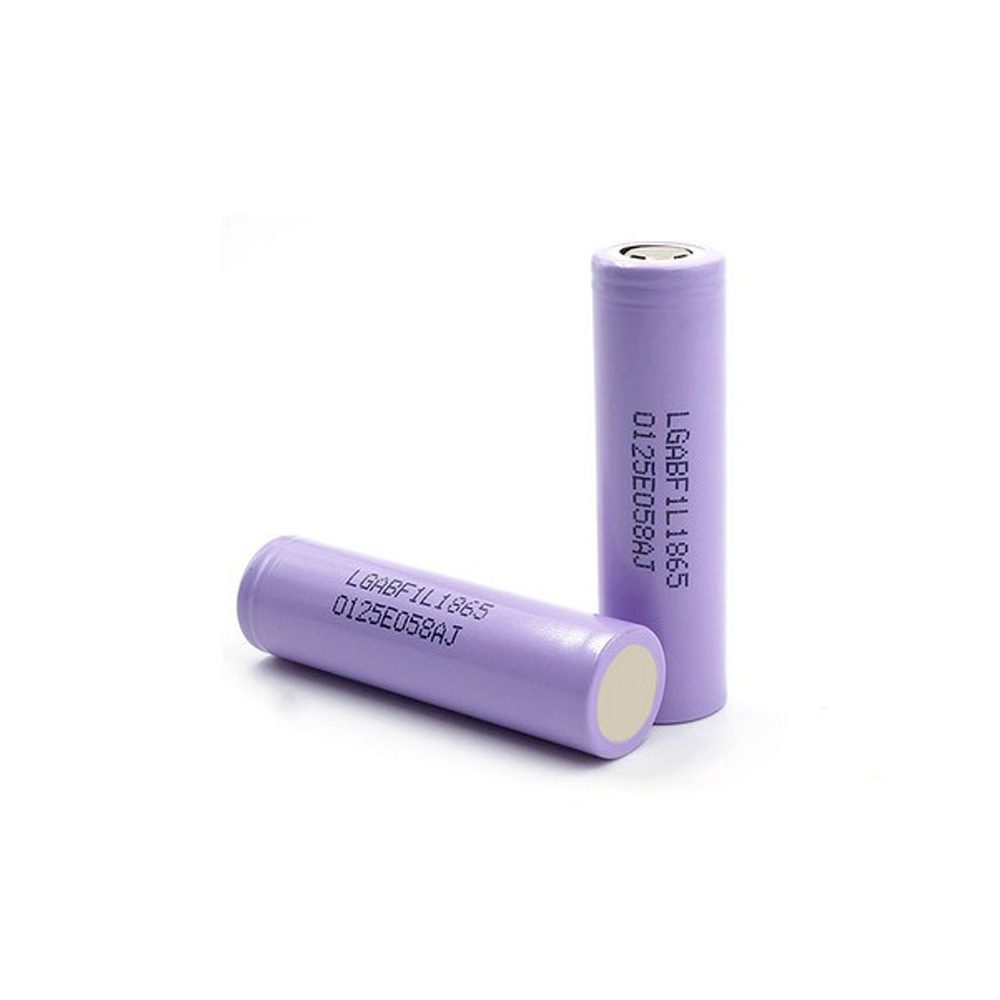

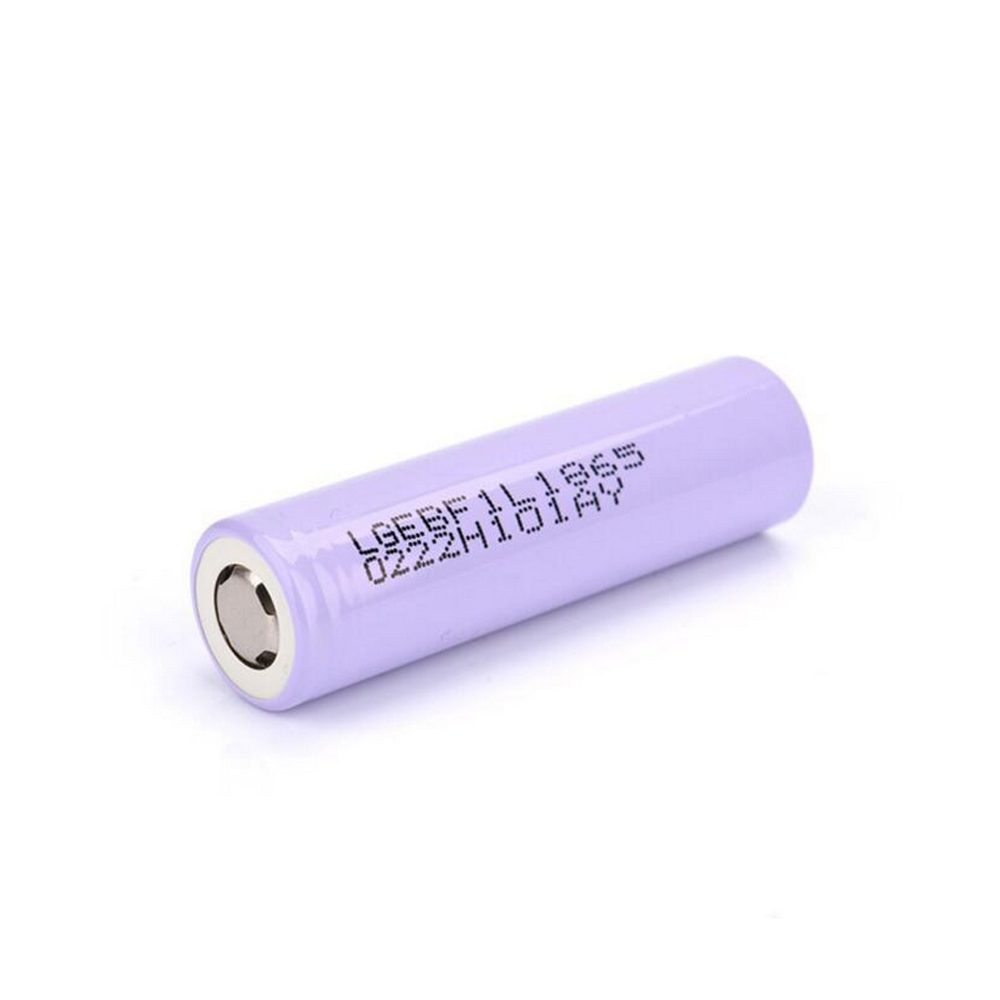

LG18650F1L 3400mAh 18650 Li-ion Battery Cell

Category: Cylindrical Cell

Specifcations of LG18650F1L 3400mAh 18650 Li-ion Battery Cell

NO.	Item	LG INR18650F1L
1	Nominal Voltage	3.7V
2	Nominal Capacity	3350mAh
3	Standard charge	Constant Current: 0.3C (975mA) Constant voltage : 4.2V End current(Cut off) : 50mA
4	Max. Charge Current	0.5C(1625mA)
5	Max. Charge Voltage	4.20 ± 0.05 V
6	Standard Discharge	Constant Current: 0.2C (650mA) End current(Cut off) : 2.5V
7	Max. continuous discharge current	1.5C 5A
8	Discharge cut-off voltage End of discharge	2.5V ( 2.5V discharge cut-off is better in cycle life )
9	Cell weight	49.0g max.
10	Cell dimension	Height : 65.15 mm max. Diameter : 18.65 mm max.
11	Operating temperature (surface temperature)	Charge : 0 °C to 45°C (recommended recharge release < 45°C) Discharge: -20°C to 60°C (recommended re-discharge release < 60°C)
12	Storage temperature (Recovery 90% after storage)	1 year -20~20°C 3 months -20~45°C 1 month -20~60°C

Note: If battery cells are kept as ex-factory status (50% of charge)

The capacity recovery rate is more than 80%.
