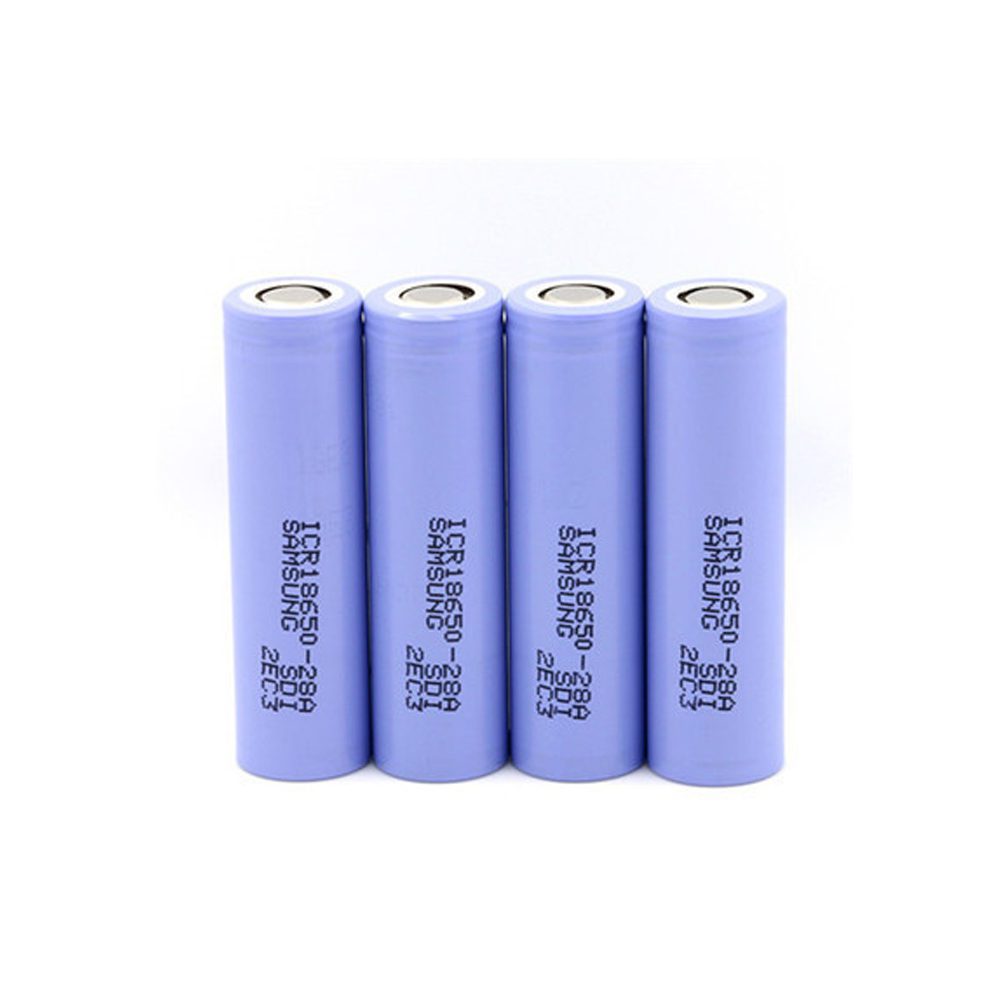

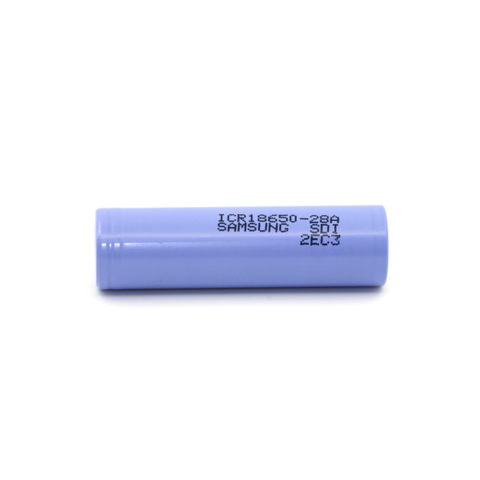

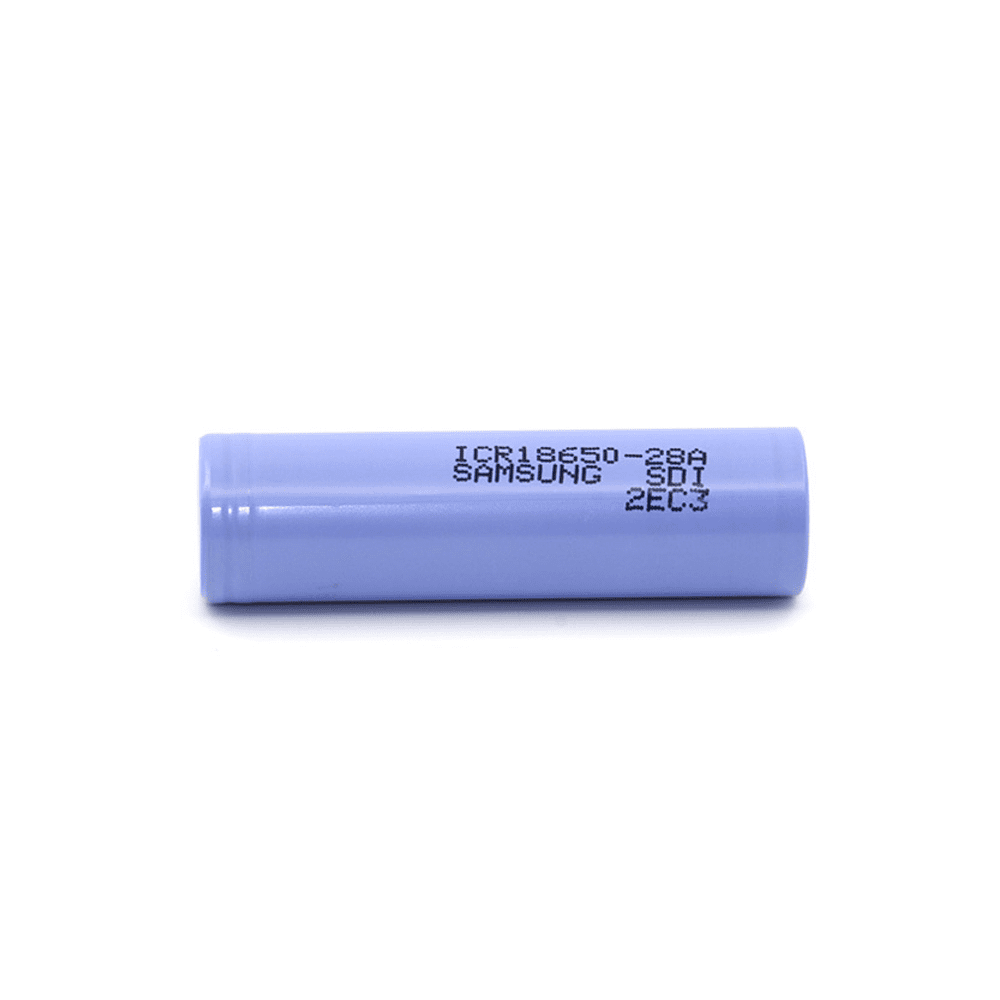

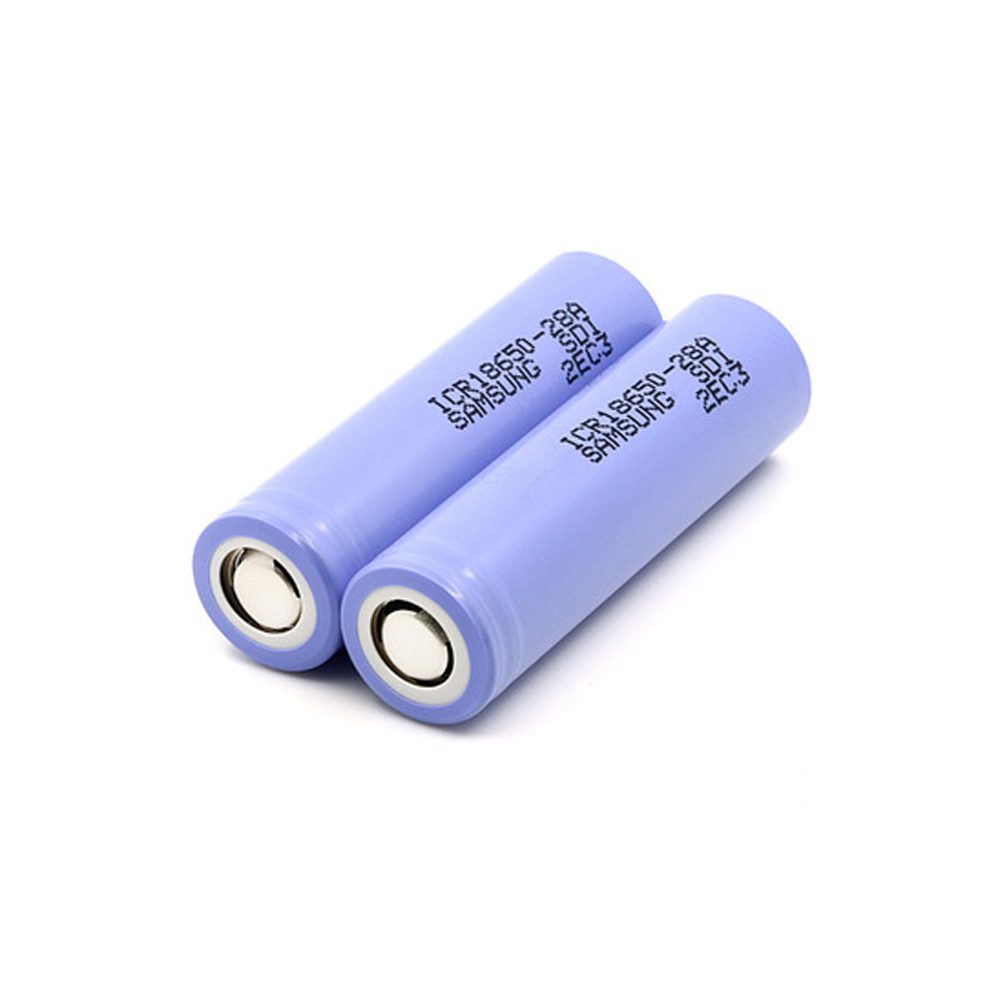

Samsung ICR18650 28A 2800mAh

Category:

Specifcations of Samsung  Samsung ICR18650 28A 2800mAh

Item Specification
Nominal Discharge Capacity

2800mAh (0.2C,2.75V discharge)

Minimum Capacity 2700mAh (0.2C, 2.75V discharge)
Charging Voltage 4.3±0.03V
Nominal Voltage 3.75V
Charging Method CC-CV (Constant voltage with limited current)
Charging Current Standard charge: 1,400mA, Rapid charge: 2,800mA
Charging Time Standard charge: 3 hours, Rapid charge: 2.5 hours
Discharge Current 2,800mA (ambient temperature 25°C) – 97% Capacity
Max. Discharge Current 5600mA MAX(@25°C)
Discharge Cut-off Voltage 2.75V
Cell Weight 45g max.
Cell Dimension Height: 65.00mm max. Diameter: 18.33mm max.
Operating Temperature Charge: 0 to 50 °C Discharge:-20 to 75°C
Storage Temperature

1.5Year -30°C ~ 25°C

3 Months -30°C ~ 45°C

1 Month -30°C ~ 50°C



Note:If battery cells are kept as ex-factory status (50% of charge)

         The capacity recovery rate is more than 80%.
